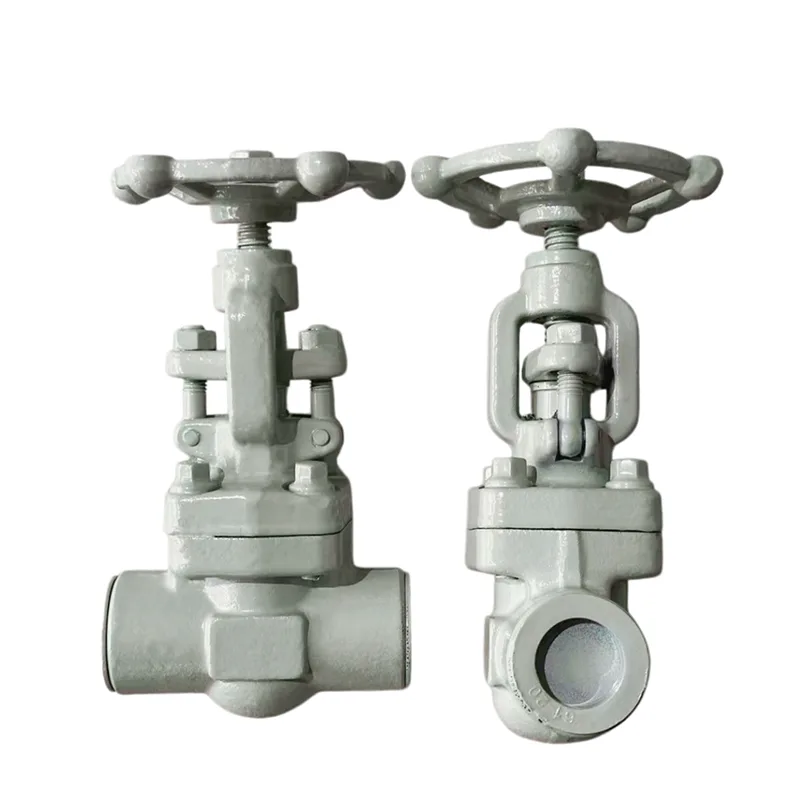

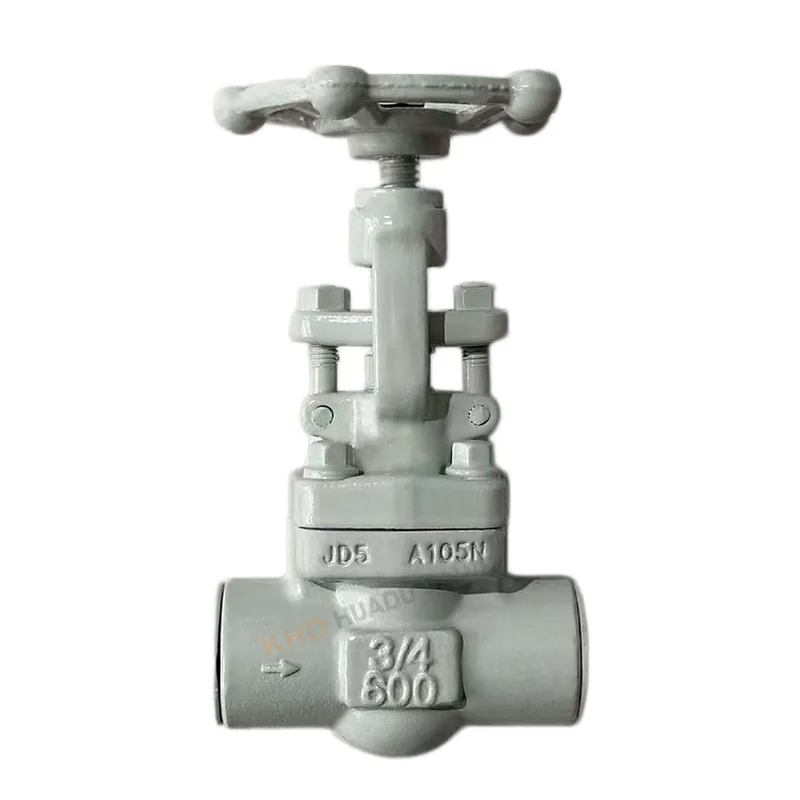

Socket-welded Forged Gate Valve

Iyo socket-welded forged gedhi vharafu ndeye yakakwirira-kumanikidza maindasitiri vharafu yakagadzirirwa kuvharika kwepombi uye kuyerera kwekudzora. Yakagadzirwa neHuadu Valve Group, inoshandisa A105N forged carbon steel uye inokodzera Class 600 mamiriro ekushanda. Inoshandiswa zvakanyanya mu petroleum, chemikemikari, simba, uye high-pressure steam systems apo kuchengetedzwa uye kuiswa chisimbiso kunokosha.Iyo socket-welded forged gedhi valve inovimbisa kushanda kwakagadzikana uye hupenyu hurefu hwebasa munzvimbo dzinoda indasitiri.

Raw Material & Structural Advantages

Yepamusoro-Yepamusoro Yakagadzirwa Simbi Muviri

Iyo socket-welded forged gedhi vharuvhu inogadzirwa kubva kuA105N yeforged kabhoni simbi, kuve nechokwadi:

High simba uye density

Excellent impact resistance

Hapana kukanganisa kwekukanda senge pores kana jecha maburi

Kuongorora Kwakasimba Kwezvinhu

Batch yega yega yezvakagadzirwa zvinoedzwa uchishandisa spectral ongororo kuti ive nechokwadi:

Yakarurama kemikari yakagadzirwa

Hapana zvakadzokororwa kana zvisizvo

Yakagadzikana mechanical performance

Socket-Weld Connection Benefits

Iyo socket-welded forged gedhi valve yekubatanidza mhando inopa:

Kuisa chisimbiso kwakasimba

Zvirinani high-pressure resistance pane flanges

Yakaderedzwa leakage njodzi mune yakakosha system

Zvidimbu zvehunyanzvi

Standard Parameters

Saizi: DN15-DN50 (yakajairika stock)

Pressure Rating: Kirasi 300 / Kirasi 600

zvinhu: A105N forged kabhoni simbi

Rudzi: Socket-welded forged gedhi vharafu

Tembiricha Range: -29°C kusvika 570°C

Manufacturing Process

Iyo socket-welded forged gedhi valve inogadzirwa kuburikidza:

Integral kufa forging

Heat treatment (normalizing process)

CNC chaiyo machining

Performance Features

Micron-level sealing surface kunyatsoita

Zero-leakage sealing performance

Smooth operation pasina jamming

Inokodzera kune yakakwirira-tembiricha steam system

Nzvimbo dzekushandisa

Oiri & Gasi Indasitiri

Iyo socket-welded forged gedhi valve inoshandiswa zvakanyanya mu:

Mapaipi ekunatsa

Oiri kutapurirana masisitimu

Zvigadzirwa zvegasi zvakasikwa

Chemical Industry

Mapaipi emakemikari epamusoro-soro

Corrosive fluid control systems

Reactor inlet/outlet masisitimu

Simba Indasitiri

Steam mapaipi

Thermal power systems

Condensate mapaipi

General Industrial Use

High-pressure diki-diameter mapaipi

Equipment isolation systems

Zvishandiso zvekuchengetedza zvekuvhara

Hunhu hunokosha

FAQ

Chii chinonzi socket-weld chinongedzo?

Socket-weld connection inzira yekubatanidza pombi apo pombi inopinzwa musoketi yakadzoreredzwa yobva yabatanidzwa nekunze. Inowanzoshandiswa mukukwirira-kudzvinyirira, zviduku-diameter systems.

Kana iri socket-welded forged gedhi vharuvhu, pombi inopinzwa muvharuvhu inoperera socket yobatanidzwa kuti iite mubatanidzwa wakasimba, usingabvi.

Zvinhu zvakakosha zve socket-weld yekubatanidza

Kusimba kwepamusoro uye kupikisa kudzvinyirira

Yakanakisa yekuisa chisimbiso kuita

Inokodzera DN15-DN50 mapaipi madiki

Yakadzikira njodzi yekudonha kana ichienzaniswa neyakarukwa majoini

Yakajairika mumafuta, gasi, uye masystem system

Mavharuvhu e-socket-weld anofanira kupatsanurwa asati apinza?

Hongu, zvachose. Usati waisa socket-welded forged gedhi vharafu, valve haifanirwe kuunganidzwa zvishoma panguva yewelding.

Maitiro ekuisa akakodzera:

Bvisa zvikamu zvemukati kana zvichibvira (kana chengetedza vharafu yakazaruka zvizere)

Isa pombi zvizere musocket

Chengetedza gaka diki rekuwedzera (~ 1.5-2 mm)

Ita welding chete pamubatanidzwa wekunze

Bvumira kutonhora usati washandisa valve

Zvinyorwa zvakakosha:

Dzivisa kupisa muviri wevharuvhu

Dzivirira welding slag kubva pakupinda mukati mevhavha

Ita shuwa kurongeka kwakaringana usati welding

Welding isina kufanira inogona kukuvadza chisimbiso nzvimbo uye kuderedza hupenyu hwevharuvhu.

Ndeupi musiyano uripo pakati peOS&Y uye bolted bonnet?

Aya ndiwo maviri akasiyana dhizaini anoshandiswa mumavharuvhu egedhi.

OS&Y (Kunze Chikurunga & Joko)

Tsinde shinda iri kunze kwemuviri wevharuvhu

Kuoneka tsinde kufamba kunoratidza kuvhurika/kuvhara chimiro

Kugadzirisa kuri nyore uye kutarisa kwekushanda

Yakajairika mukudzivirira moto uye maindasitiri masisitimu

Bolted Bonnet

Bonnet yakabatana nevhavha muviri uchishandisa mabhaudhi

Yemukati stem dhizaini (isingaonekwe kunze)

Compact structure

Inoshandiswa zvakanyanya mune zvakajairika maindasitiri application

Kuenzanisa kuri nyore:

OS&Y = kuoneka kwekunze + nyore kushanda kwekutarisa

Bolted bonnet = compact + inodhura-inoshanda chimiro

Mhando dzese dziri mbiri dzinogona kuiswa mune socket-welded forged gedhi vharafu zvinoenderana nezvinodiwa zveprojekiti.
